| Question: How do I configure Zara Studio to work with my Webstation, Airlite or Airence? |
|---|
| Answer: Link: please follow the steps at this link |

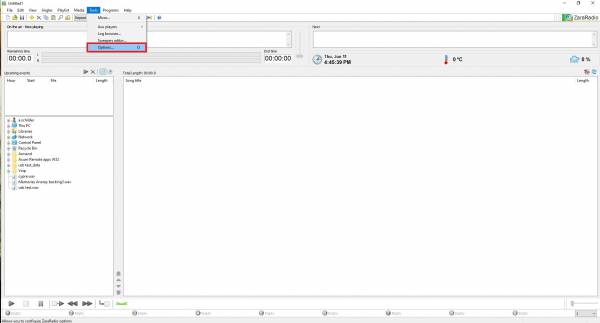

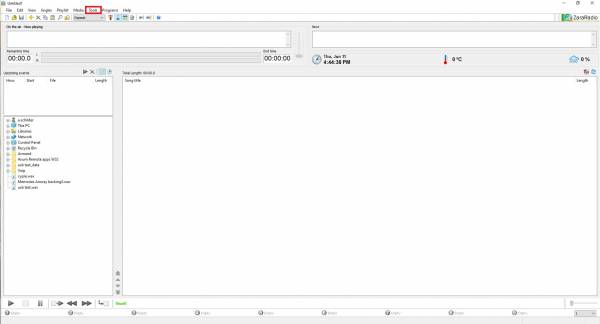

When you have started Zara Studio click on the “Tools” pull down menu in the Red square.
Click at “Options” in the Red square.

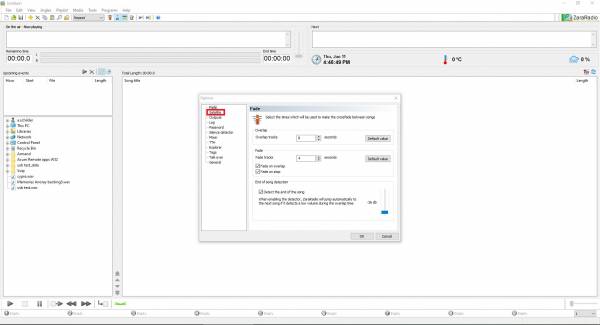

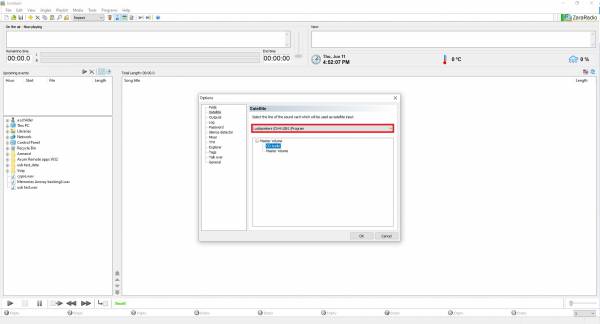

Go to the “Satellite” page in the Red square.
At the audio setting in the Red square you can select the mixers output that is used for transmitting on air/on line.

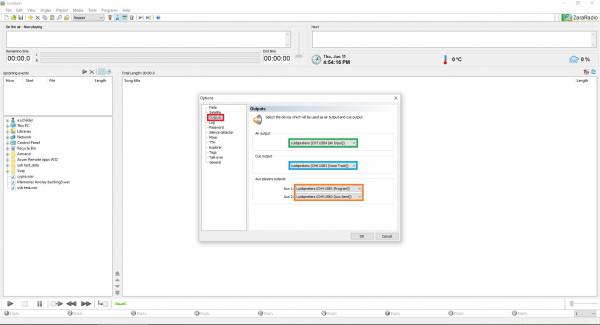

In the Orange square you can set the Audio codecs that are used for the 2 “Aux players”.
Then at the Blue square you can set the Audio codec that is used for the “Cue player”.
In the Green square you can set the Audio codec that is used for listening back the on air/on line input with optional processing.
Press “OK” to apply settings.
We recomend to restart Zara Studio.

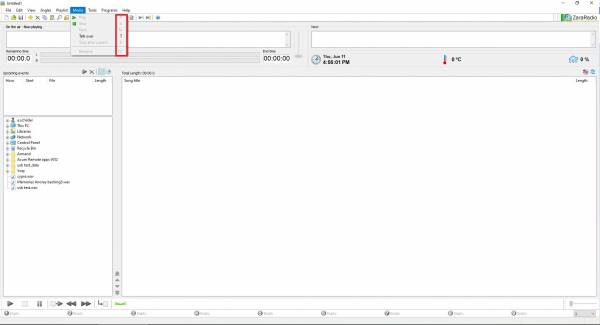

When you click at the “Media” pull down menu (In the red square) you'll see the Keyboard Shortcuts that can be used to control Zara Studio.

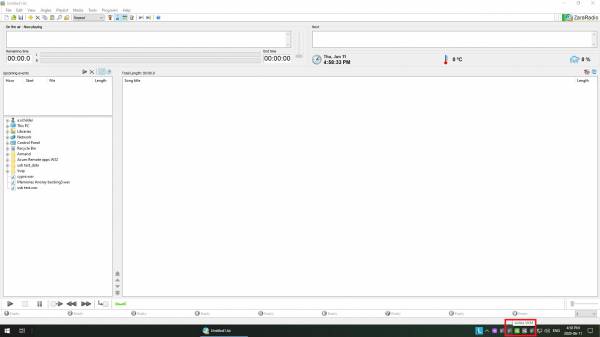

At the Windows task bar open the “Virtual Keyboard Mapper” (in the red square) that is designed for your mixing console.

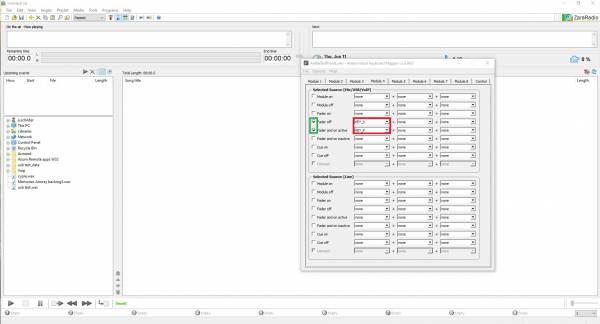

In the “Virtual Keyboard Mapper” display go to the “Module 4” tab.
The Keyboard Shortcuts that you found earlier have to be configured at “Fader and on active” which is fader start and can be triggered with “KEY_P” and “Fader off” which is fader stop and can be triggered with “KEY_S”.
Don't forget to check the check boxes in the Green square.

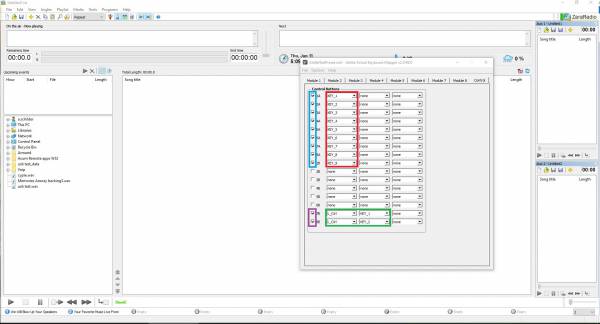

Now go to the “Control” tab.
In the Red square you can configure “KEY_1” to “KEY_9” which are the keyboard shortcuts to start a Jingle (Cartwall) player.
Don't forget to check the check boxes in the Blue square.
As an example I also added “L_Ctrl” and “KEY_1” to activate Aux Player 1.
As an example I also added “L_Ctrl” and “KEY_2” to activate Aux Player 2.
Don't forget to check the check boxes in the Purple square.
